Disc Plough
Disc Plough

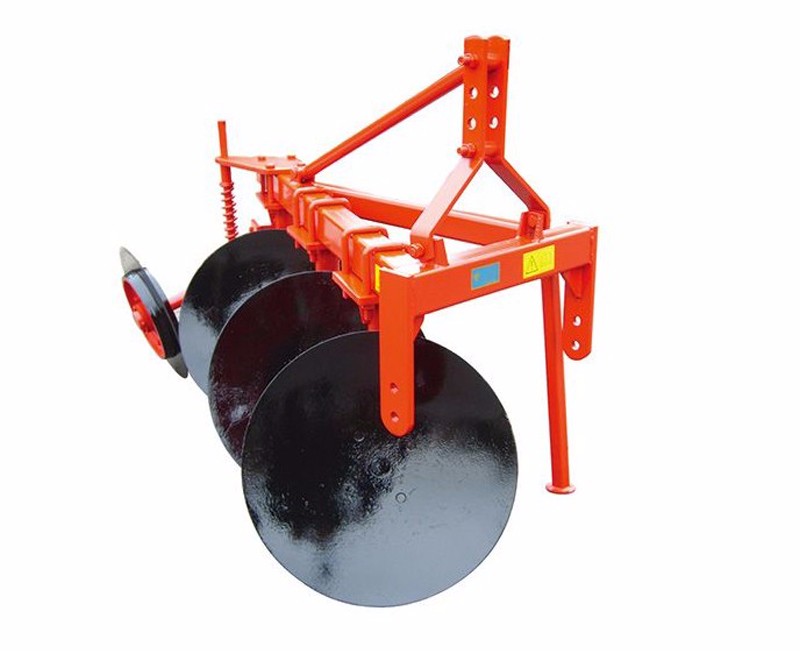

The 1BDP series driven disc plough is mounted with tractor by the rear 3-point suspension device and drives the plough discs to rotate in the way of delivering power by tractor’s rear PTO to the disc plough’s gear box. The machine is mainly used for cultivating on paddy field with the advantages of non-tangling weeds, high quality and efficiency.
2. Technical Parameters
Model
Type
Working
width (mm)
Max
Working depth (mm)
Dia.
Of Disc Blade (inch/ mm)
Weight
(kg)
Matched
Power （HP）
1BDP-320
660
120-200
510*4
216
20-30
1BDP-420
880
120-200
510*4
240
25-30
1BDP-520
1100
120-200
510*4
276
25-35
1BDP-522
1100
120-200
560*4
300
35-45
1BDP-622
1320
120-200
560*5
324
40-55
1BDP-722
1540
120-200
560*5
357
55-65
1BDP-822
1760
120-200
560*5
393
65-75
1BDP-922
1980
120-200
560*5
430
70-80
