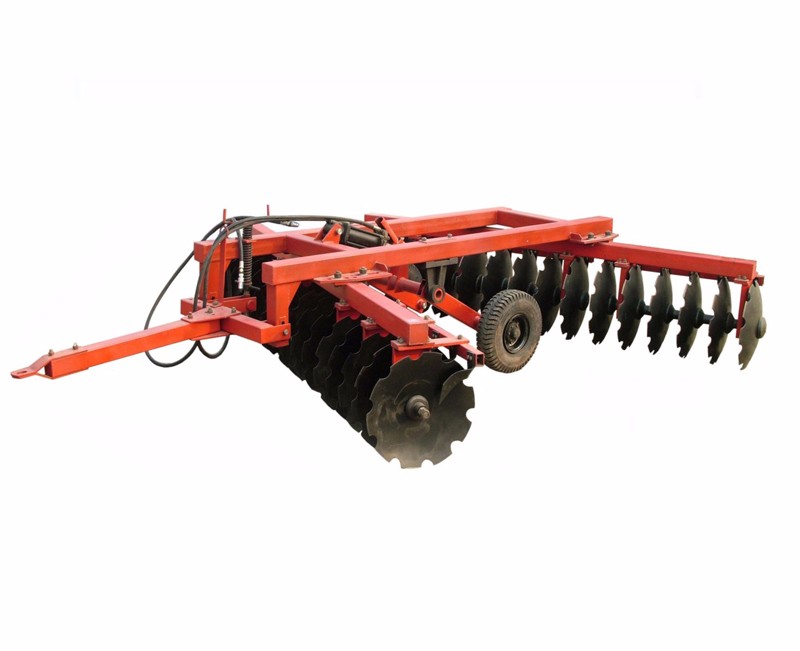

Heavy-Duty Disc Harrow
Heavy-Duty Disc Harrow
The 1HDH series heavy duty disc harrow are designed for more than 100hp tractor. This model is designed and developed by our factory, it passed the inspection in land field. This model is firm and strong enough, especially suitable for hard soil and open up wasteland.
2. Technical Parameters
Model
Type
Working
width (mm)
Max
Working depth (mm)
No.
Of Disc (pcs)
Dia.
Of Disc (inch/ mm)
Weight
(kg)
Matched
Power （HP）
1HDH-2.6
2600
220-250
24
26/660
2050
80-100
1HDH-3.0
3000
220-250
28
26/660
2450
100-120
1HDH-3.3
3300
220-250
32
26/660
2650
120-140
1HDH-4.0
4000
220-250
36
26/660
3000
140-160
1HDH-4.4
4400
220-250
40
26/660
3200
160-180
1HDH-4.8
4800
220-250
44
26/660
3500
180-200
