Mid-size Disc Harrow
Mid-size Disc Harrow

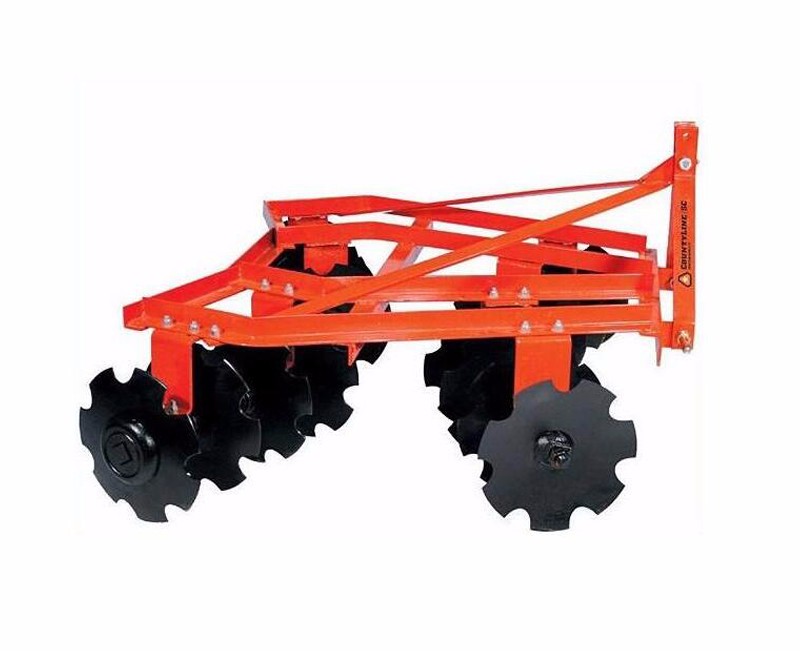

The 1BMDH series mounted mid-size disc harrow is mainly applicable for breaking up the clods of farmland (light and mediumsoil) after furrow, loosening soil and mixing soil and fertilizer before sowing. It has the features of simple structure, strong ability and ground flat after working and it can meet the requirements of intensive cultivation.
2. Technical Parameters
|
Model Type |
Working width (mm) |
Max Working depth (mm) |
No. Of Disc (pcs) |
Dia. Of Disc (inch/ mm) |
Weight (kg) |
Matched Power （HP） |
|
1BMDH-1.7 |
1700 |
140-160 |
16 |
22/560 |
400 |
40 |
|
1BMDH-2.0 |
2000 |
140-160 |
18 |
22/560 |
435 |
50-60 |
|
1BMDH-2.2 |
2200 |
140-160 |
20 |
22/560 |
463 |
55-65 |
|
1BMDH-2.4 |
2400 |
140-160 |
22 |
22/560 |
604 |
65-70 |
|
1BMDH-2.5 |
2500 |
140-160 |
24 |
22/560 |
760 |
70-80 |
|
1BMDH-4.4 |
4400 |
140-160 |
40 |
22/560 |
1850 |
80-120 |
