Light-size Disc Harrow
Light-size Disc Harrow

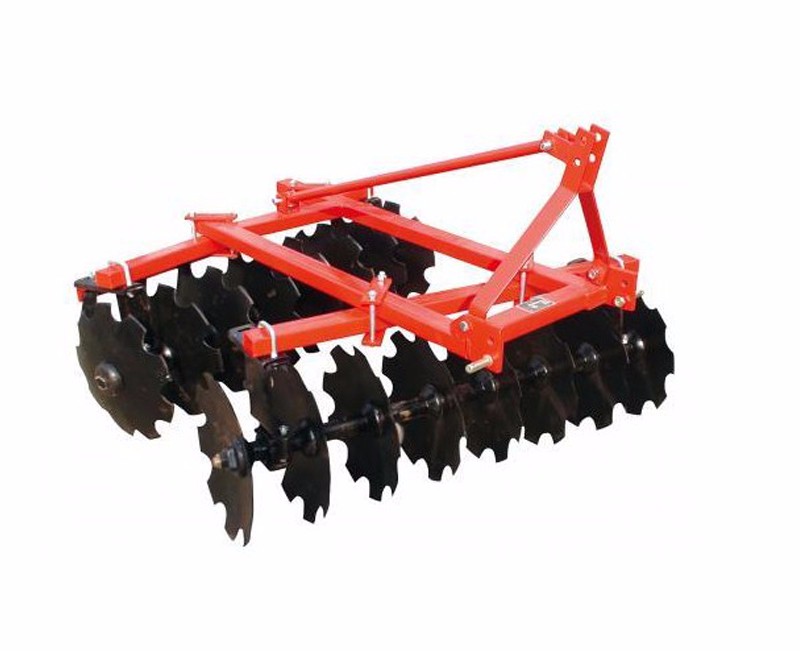

The 1BLDH series mounted light-size disc harrow are suitable for pilwerized loosing clods after ploughing and for planting the land before sowing on cultivated land. The machine can make soil and fertilizer mix up and clear away the stump of plants on light soil and preparing seed bed for planting.
2. Technical Parameters
|
Model Type |
Working width (mm) |
Max Working depth (mm) |
No. Of Disc (PCS) |
Dia. Of Disc (mm) |
Weight (kg) |
Matched Power （HP） |
|
1BLDH-1.1 |
1100 |
100 |
12 |
460 |
200 |
12-15 |
|
1BLDH-1.3 |
1300 |
100 |
14 |
460 |
220 |
15-18 |
|
1BLDH-1.5 |
1500 |
140 |
16 |
460 |
240 |
25-30 |
|
1BLDH-1.7 |
1700 |
140 |
18 |
460 |
260 |
30-35 |
|
1BLDH-1.9 |
1900 |
140 |
20 |
460 |
290 |
35-40 |
|
1BLDH-2.2 |
2200 |
140 |
24 |
460 |
350 |
55-60 |
|
1BLDH-3.4 |
3400 |
140 |
42 |
460 |
1108 |
80-100 |
